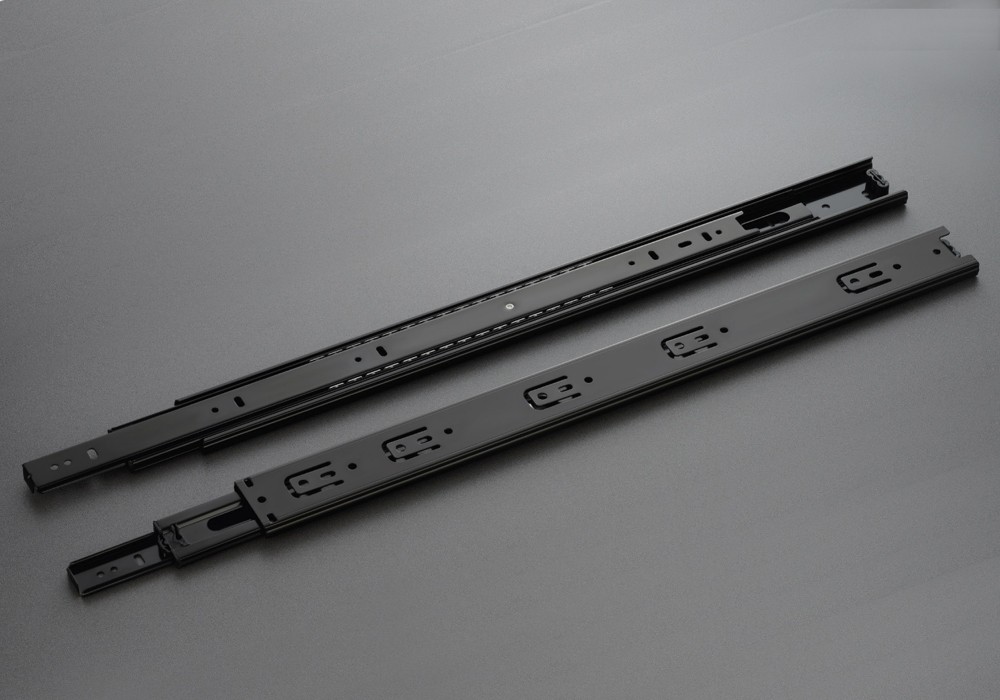

Economic Drawer Slides

Economic Drawer Slides

Specifications

Specification Value
Width 45mm
Weight 55Gms (per inch)
Load Capacity 35Kg
Size 8” – 26” (200mm – 650mm)
Thickness 0.9 * 0.9 * 1 mm
Finish Zinc | Black
Material Cold Rolled Steel
Installation Side - Mounted

Size

Size (Inch) Size (mm) Travel (mm)
8” 200 200
10” 250 250
12” 300 300
14” 350 350
16” 400 400
18” 450 450
20” 500 500
22” 550 550
24” 600 600
26” 650 650
