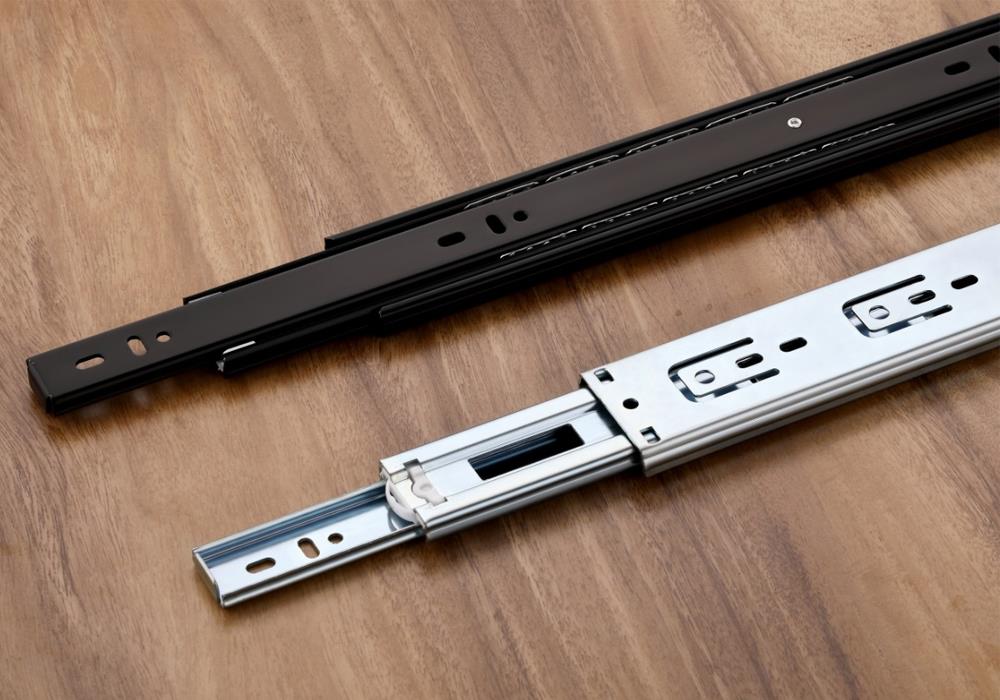

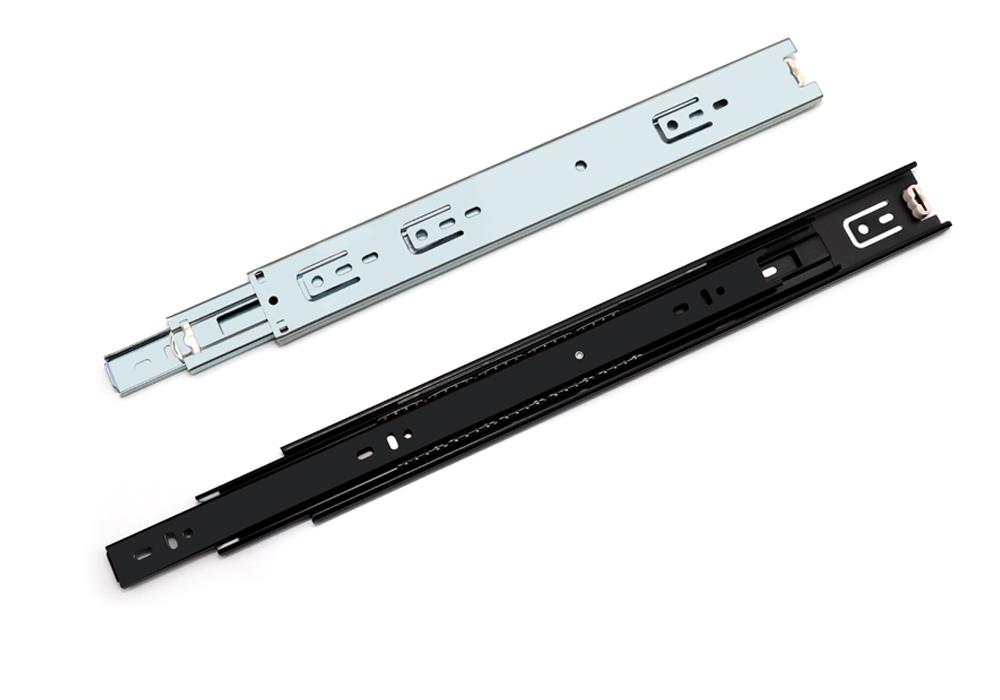

RS-102 Drawer Slide

RS-102 Drawer Slide

Specification

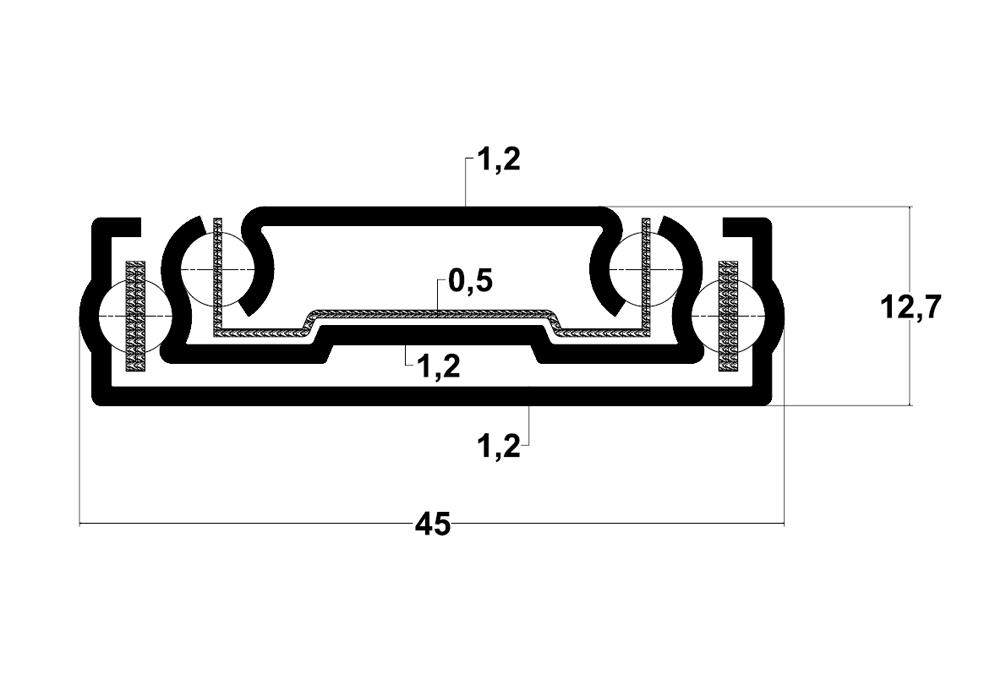

  • Width : 45 mm (+/- 0.3mm)
  • Height : 12.7mm (+/- 0.2)
  • Weight : 72 gm
  • Load Capacity : 45 Kg.
  • Size : 10”– 24” (250 mm – 600 mm)
  • Thickness : 1.2mm  x 1.2mm x 1.2mm
  • Finish : Zinc / Black
  • Material : Cold rolled steel
  • Installation : Side-mounted
  • Usage : Office furniture, Kitchen furniture and Household furniture drawer.
Size (Inch) 10" 12" 14" 16" 18" 20" 22" 24"
Size (mm) 250 300 350 400 450 500 550 600
Travel (mm) 250 300 350 400 450 500 550 600
