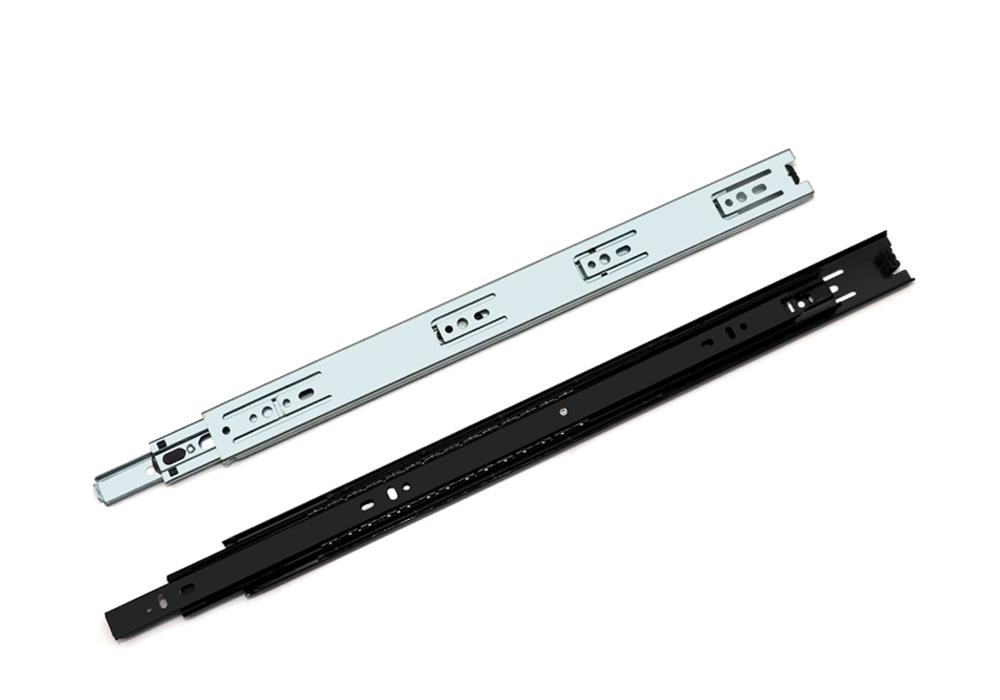

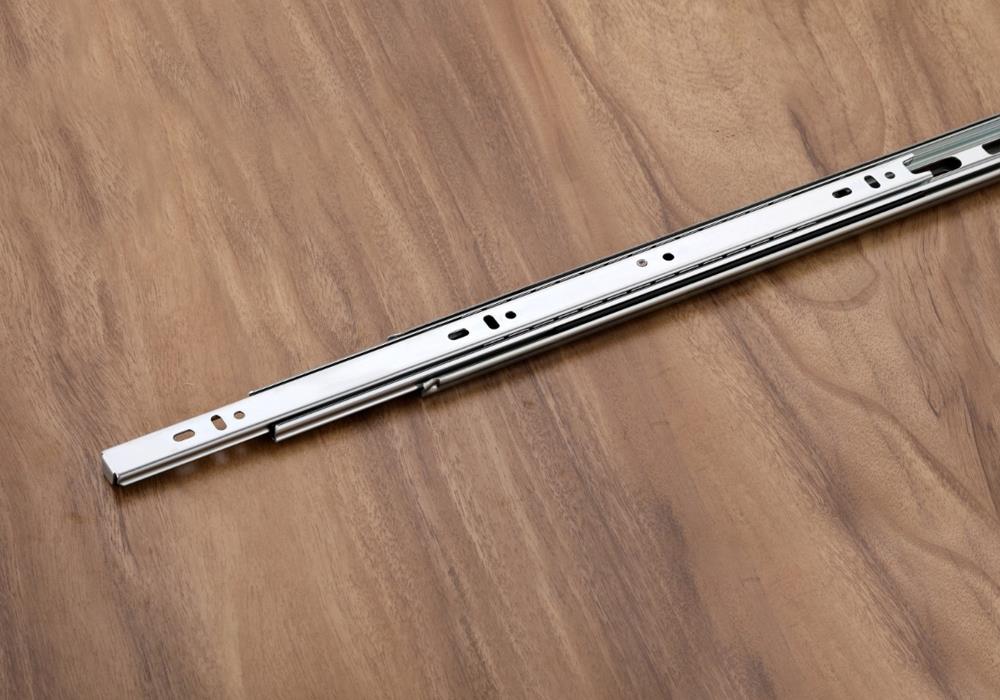

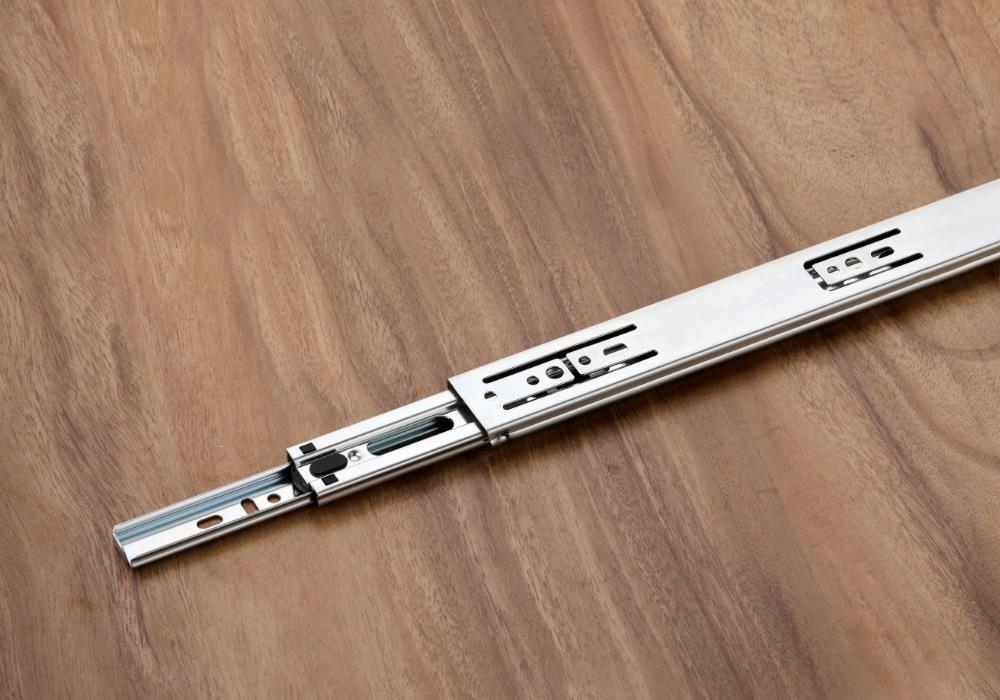

RS-104 Drawer Slide

RS-104 Drawer Slide

Specification

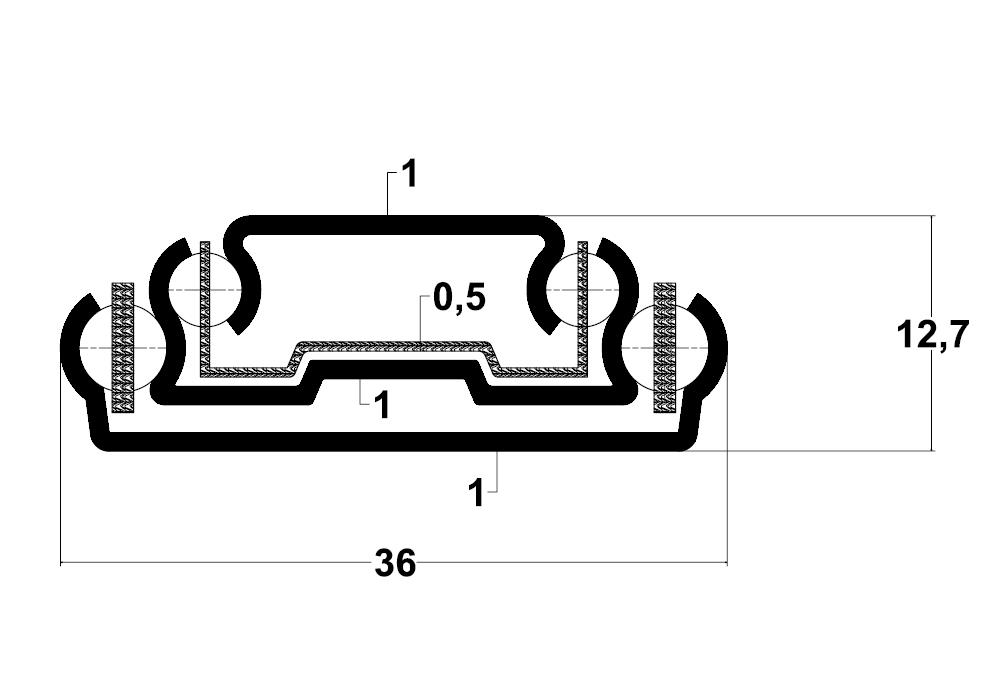

  • Width : 35 mm (+/- 0.3mm)
  • Height : 12.7mm (+/- 0.2)
  • Weight : 45 gm
  • Load Capacity : 30 Kg.
  • Size : 10”– 22” (250 mm – 550 mm)
  • Thickness : 1mm x1mm x1mm
  • Finish : Zinc / Black
  • Material : Cold rolled steel
  • Installation : Side-mounted
  • Usage : Office furniture, Kitchen furniture and Household furniture drawer
Size (Inch) 10" 12" 14" 16" 18" 20" 22" 24"
Size (mm) 250 300 350 400 450 500 550 600
Travel (mm) 250 300 350 400 450 500 550 600
